Auditing hosts using CFEngine, EFL, and Delta Reporting

Tags:

Clip board

Sometimes you want to audit a host without changing it. This can be hard with CFEngine, but with EFL and Delta Reporting it's possible.

Consider these arbitrary tests:

  1. Is vm.swappiness 60?

  2. Is vm.swappiness not 70?

  3. Does the hash of /etc/ssh/ssh_config match a predetermined string?

  4. Is ntp configured to start at boot time?

  5. Is ftpd not configured to start at boot time?

Testing is all about classes in CFEngine. Whether or not a class is set determines the results of your test. EFL has many bundles for creating classes. Two of them, efl_class_cmd_regcmp and efl_class_returnszero, I'll use to make the above tests. I'm assuming that you have some knowledge of CFEngine and EFL.

The first three tests can be accomplished by testing the output of a command with a regular expression. I'll use the bundle efl_class_cmd_regcmp for that. Here is the parameter file:

[
   {
      "class": "any",
      "class_to_set": "vm_swappiness_is_60",
      "command" : "/sbin/sysctl vm.swappiness",
      "regex" : "\Qvm.swappiness = 60\E",
      "expression" : "expression",
      "useshell" : "noshell",
      "promisee" : "infosec audit"
   },
   {
      "class": "any",
      "class_to_set": "vm_swappiness_is_not_70",
      "command" : "/sbin/sysctl vm.swappiness",
      "regex" : "\Qvm.swappiness = 70\E",
      "expression" : "not",
      "useshell" : "noshell",
      "promisee" : "infosec audit"
   },
   {
      "class": "any",
      "class_to_set": "ssh_config_hash_is_6005ad62cd337cecbe177097cc74f0052eb15de92713eccd57c2e22fb162eaef",
      "command" : "/usr/bin/sha256sum /etc/ssh/ssh_config",
      "regex" : "(?x) 6005ad62cd337cecbe177097cc74f0052eb15de92713eccd57c2e22fb162eaef \s+ /etc/ssh/ssh_config",
      "expression" : "expression",
      "useshell" : "noshell",
      "promisee" : "infosec audit"
   }
]

The last two tests can be performed by testing the return value of chkconfig. I'll use the bundle efl_class_returnszero for that. Here is the parameter file:

[
   {
      "class" : "any",
      "class_to_set" : "ntpd_boot_startup_enabled",
      "command" : "/sbin/chkconfig -c ntp",
      "zero" : "yes",
      "shell" : "noshell",
      "promisee" : "infosec audit"
   },
   {
      "class" : "any",
      "class_to_set" : "ftpd_boot_startup_disabled",
      "command" : "/sbin/chkconfig -c ftpd",
      "zero" : "no",
      "shell" : "noshell",
      "promisee" : "infosec audit"
   }
]

Both bundles will be run using EFL's efl_main bundle, which I won't show here. I also want some pretty and testable output. I can use EFL's efl_test_classes bundle for that. (see TAP and EFL). Here is the parameter file:

[
   {
      "class"         : "any",
      "class_to_test" : "vm_swappiness_is_60",
      "test_type"     : "is",
      "name"          : "Testing if vm.swappiness is 60"
   },
   {
      "class"         : "any",
      "class_to_test" : "vm_swappiness_is_not_70",
      "test_type"     : "is",
      "name"          : "Testing if vm.swappiness is not 70"
   },
   {
      "class"         : "any",
      "class_to_test" : "ssh_config_hash_is_6005ad62cd337cecbe177097cc74f0052eb15de92713eccd57c2e22fb162eaef",
      "test_type"     : "is",
      "name"          : "Testing if ssh_config is the correct file"
   },
   {
      "class"         : "any",
      "class_to_test" : "ntpd_boot_startup_enabled",
      "test_type"     : "is",
      "name"          : "Testing if ntpd boot start is enabled"
   },
   {
      "class"         : "any",
      "class_to_test" : "ftpd_boot_startup_disabled",
      "test_type"     : "is",
      "name"          : "Testing if ftpd boot start is disabled"
   }
]

Now the output (note that cf-agent 3.7.0 spewed a bunch of warnings about JSON and escape characters. I think they are harmless. You can see the bug report here.):

R: _home_neil__cfagent_inputs_test_efl_test_classes_json_4b703cc338ec6c24abbc72019bea6929482d0a38
1..5
R: _home_neil__cfagent_inputs_test_efl_test_classes_json_4b703cc338ec6c24abbc72019bea6929482d0a38
ok 1 - Testing if vm.swappiness is 60
R: _home_neil__cfagent_inputs_test_efl_test_classes_json_4b703cc338ec6c24abbc72019bea6929482d0a38
ok 2 - Testing if vm.swappiness is not 70
R: _home_neil__cfagent_inputs_test_efl_test_classes_json_4b703cc338ec6c24abbc72019bea6929482d0a38
ok 3 - Testing if ssh_config is the correct file
R: _home_neil__cfagent_inputs_test_efl_test_classes_json_4b703cc338ec6c24abbc72019bea6929482d0a38
ok 4 - Testing if ntpd boot start is enabled
R: _home_neil__cfagent_inputs_test_efl_test_classes_json_4b703cc338ec6c24abbc72019bea6929482d0a38
ok 5 - Testing if ftpd boot start is disabled

Success! For this host anyway, but suppose I have many hosts. Enter Delta Reporting. By integrating the first two bundles into my production policy I can use DR to search for class membership.

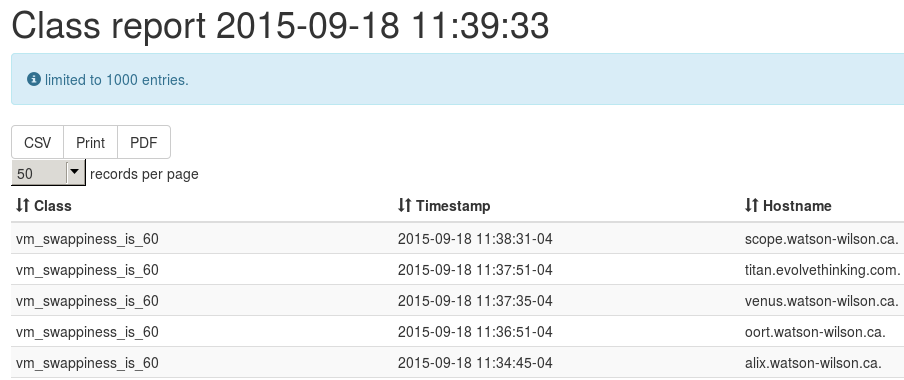

Auditing hosts using Delta Reporting Auditing hosts using Delta Reporting[/caption]

Without writing any new CFEngine policy I was able to audit my hosts in a safe and passive manner. I hope you'll try this for yourself and feel free to contact us for help.
